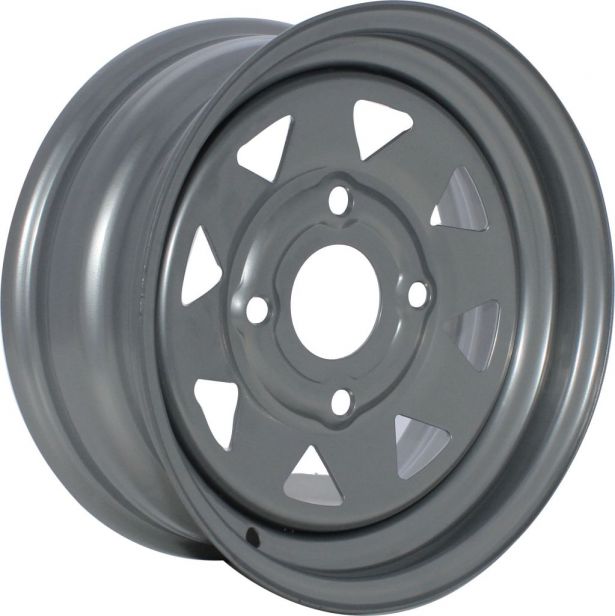

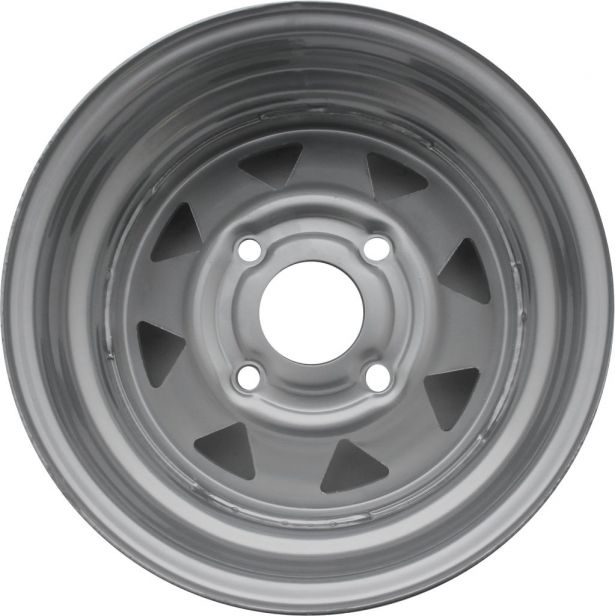

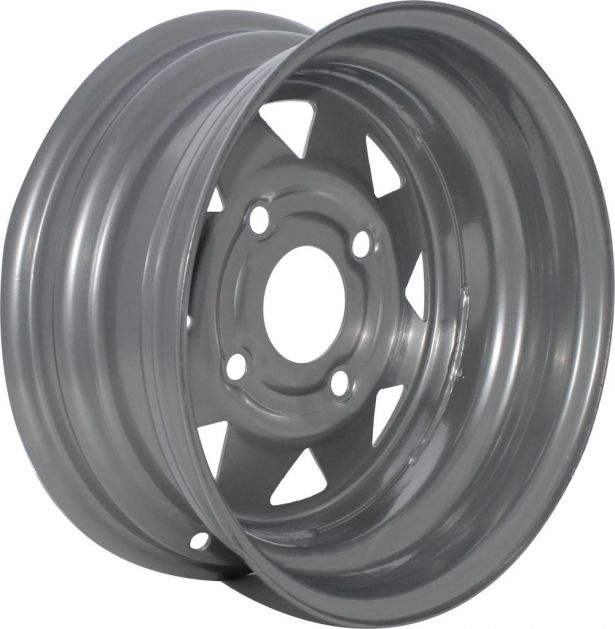

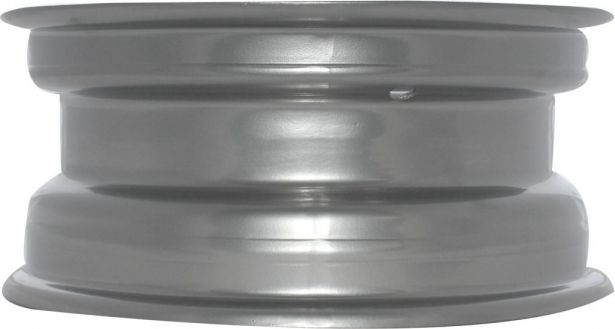

Rim - 12" Steel ATV Rim, 4 Bolt
- Steel 12" ATV rim, 4 hole mount. Most commonly applicable to (but not limited to) the front wheel assemblies on 400cc to 800cc UTVs, XUVs and ATVs. Maximum outer diameter of the outer lip is approximately 33cm (13 inches). The 4 bolt pattern measures 8cm (3.2 inches) from centre to centre. The inner hole diameter is approximately 6.5cm (2.6 inches).
This rim is commonly (though not exclusively) used on Chironex Spartan 500cc and 600cc UTVs (4x4/2x4 and similar variations), Xinyang 500cc - 600cc ATVs and UTVs (4x4/2x4 and similar variations).
Common Chironex model name is primarily listed as "Chironex 500cc Spartan XUV or UTV" and "Chironex 600cc Spartan XUV or UTV" , Common listed Chironex Spartan 12 inch steel rim part number is 54111-5000 and listed in the parts manuals as "FRONT STEEL RIM(steel)".
Common Xinyang model names consist of variations of "XY500UE" and "XY600UE", as well as a range of less formal names such as "Xinyang 500cc / 600cc UTV", "Xinyang 500cc / 600cc XUV", "Xinyang 500cc / 600cc ATV", "Xinyang 500cc / 600cc 4x4/2x4" etc. Common listed Xinyang XY500UE and XY600UE 12 inch steel rim part number is 54111-5000 and listed in their parts manuals as "FRONT STEEL RIM(steel)".
- Manufactuer PN: 54111-5000
- Outer Diameter: 33cm (13")
- Bolt Pattern (center-center>: 80mm (3 5/32")
- Inner Mounting Hole: 65mm (2 9/16")
