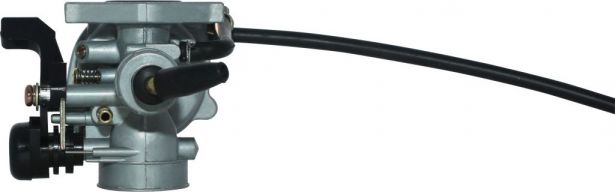

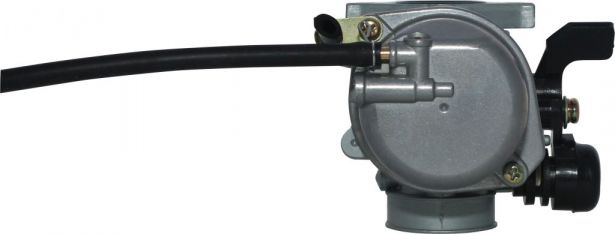

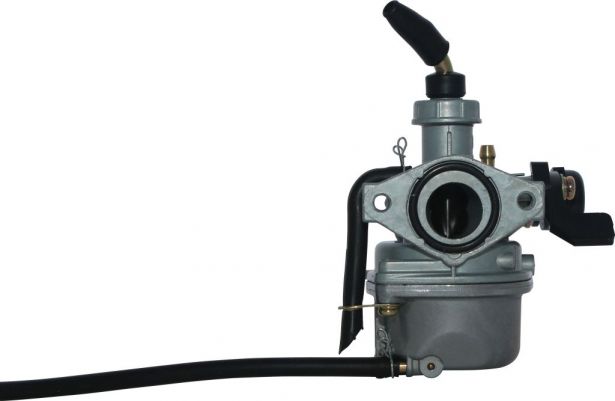

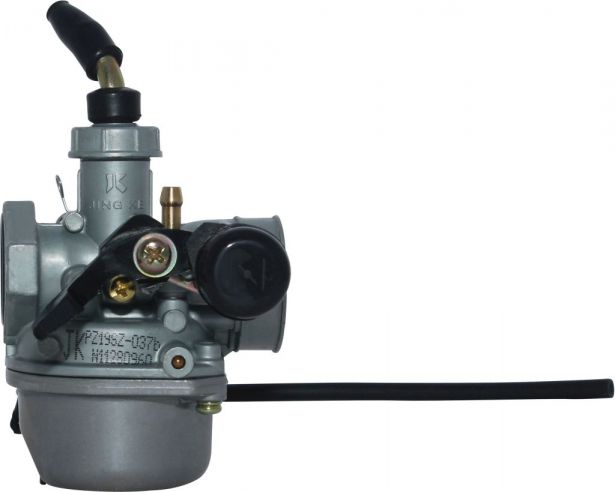

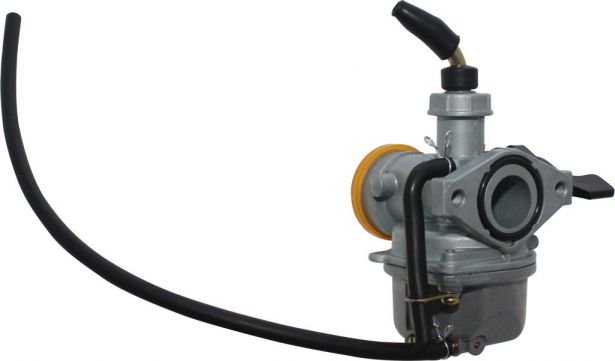

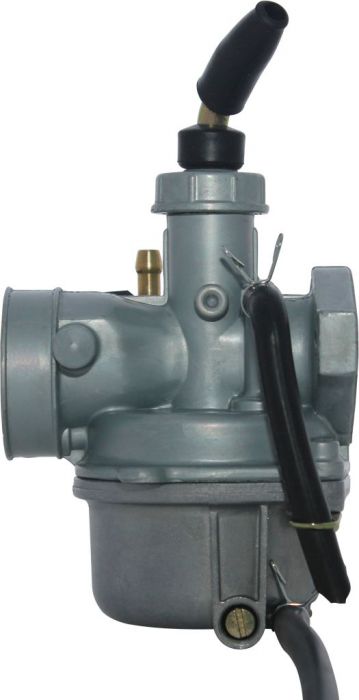

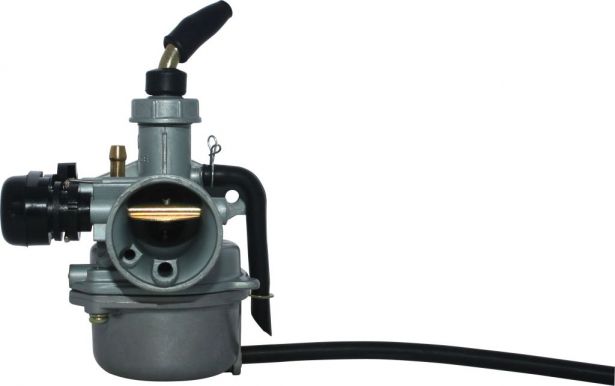

Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow

Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
  • Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Product Number:
80A2195
Availability:
In Stock
Price:
$59.99 CAD


  Description

This 19mm/32mm carburetor with manual choke lever and side facing fuel overflow (for front facing overflow refer to part number 80A2196) is most commonly used for (but not limited to) 50cc 70cc 90cc 110cc 125cc and 140cc ATVs and dirt bikes. Also applies to other models of Go karts / buggies and some manual shift scooters. This carb has a 19mm manifold opening, 32mm breather opening and 48mm center to center bolt mount. Fits 35mm air filter, such as 60A1350BU/RD and 60A1352BU/RD. Same carburetor as 80A2190 except choke is on the opposite side. Approximate dimensions:
  • Manifold: 18.2mm
  • Breather Inner Diameter: 31.22mm
  • Breather Outer Diameter: 36.19
  • Bolt Mount (centre to centre): 48mm
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Carburetor - 19mm, Manual Choke, Left Hand Choke, Side Overflow
Product Specifications
Bolt Mount (centre to centre) 48 mm
Breather Inner Diameter 31.22 mm
Breather Outer Diameter 36.19 mm
Manifold 18.2 mm
