Rim and Tire Set - Front 10" Chrome Rim (1.40x10) with 3.00-10 Tire, Disc Brake

Rim and Tire Set - Front 10
  • Rim and Tire Set - Front 10
  • Rim and Tire Set - Front 10
  • Rim and Tire Set - Front 10
  • Rim and Tire Set - Front 10
  • Rim and Tire Set - Front 10
Product Number:
40D4104CR
Availability:
In Stock
Price:
$119.99 CAD


  Description

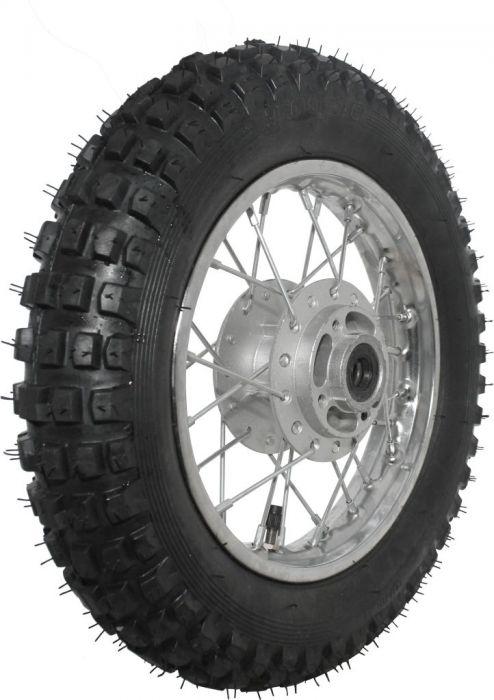

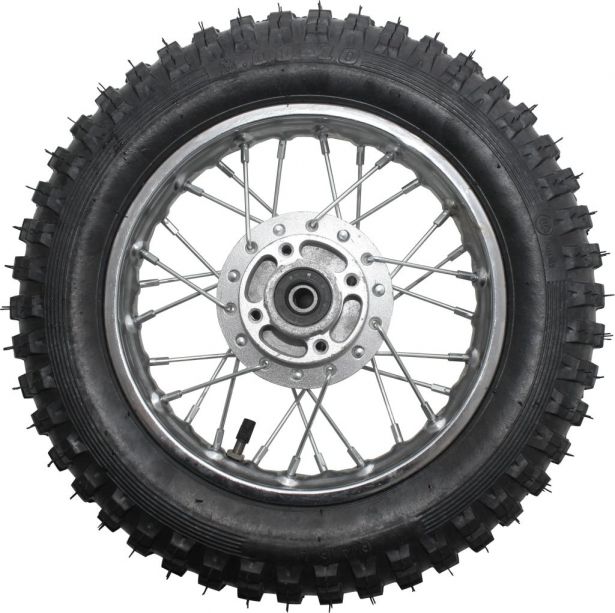

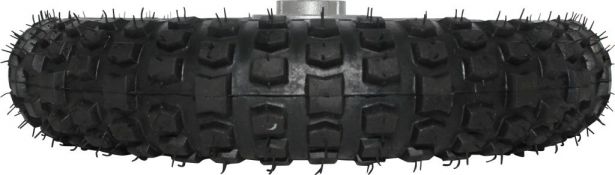

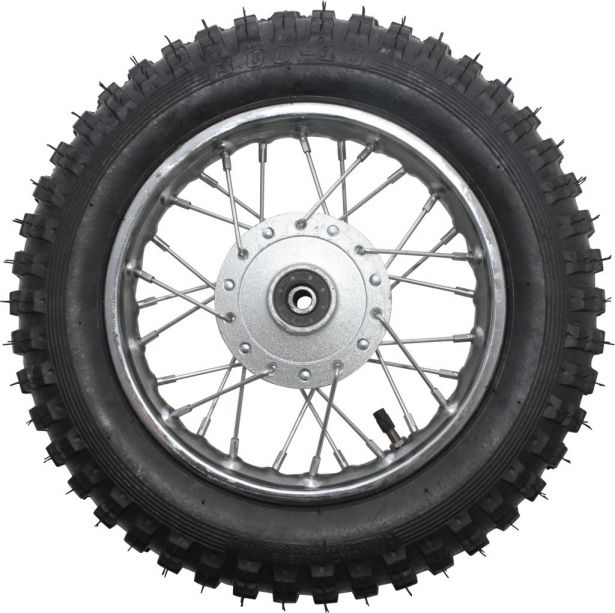

This kit contains a 10 inch front chrome rim (1.40x10) and 10 inch tire (3.00-10) primarily (though not exclusively) used for 50cc, 70cc, 90cc, 110cc and 125cc dirt bikes / pit bikes. This rim uses a disc brake. Note that 1.40x10 and 1.65x10 rims are interchangeable in most applications.
  • Placement: Front
  • Braking System: Disc/Rotor
  • Rim Size: 1.40x10
  • Tire Size: 3.00-10
  • Axle Mount Hole: 12mm
  • Bolt Mount Across (center to center): 47mm
  • Bolt Mount Diagonal (center to center): 65mm
    Associated Parts:
  • 40D1101 Tire - 3.00-10, 10 Inch, Dirt Bike
  • 40D4104BK Rim and Tire Set - Rear 10" Black Rim (1.40x10) with 3.00-10 Tire, Disc Brake
