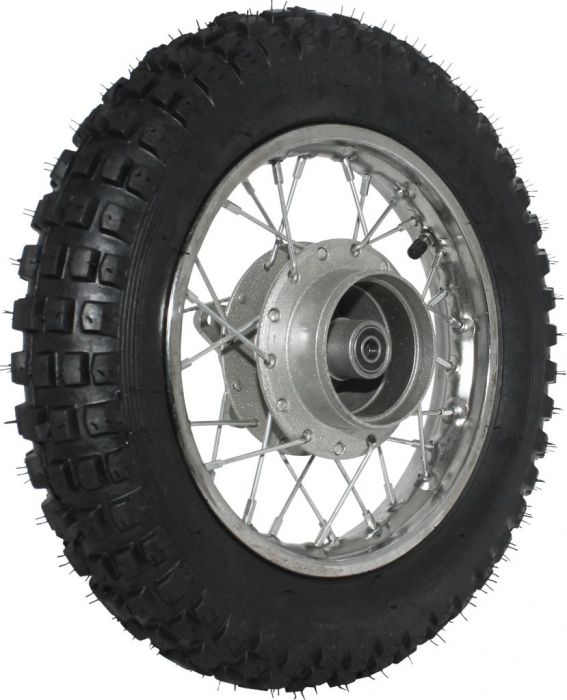

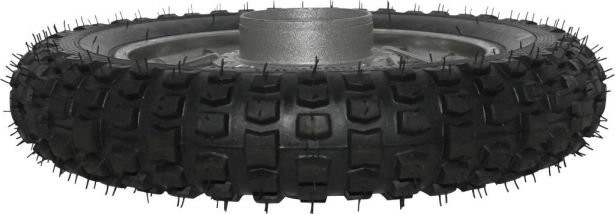

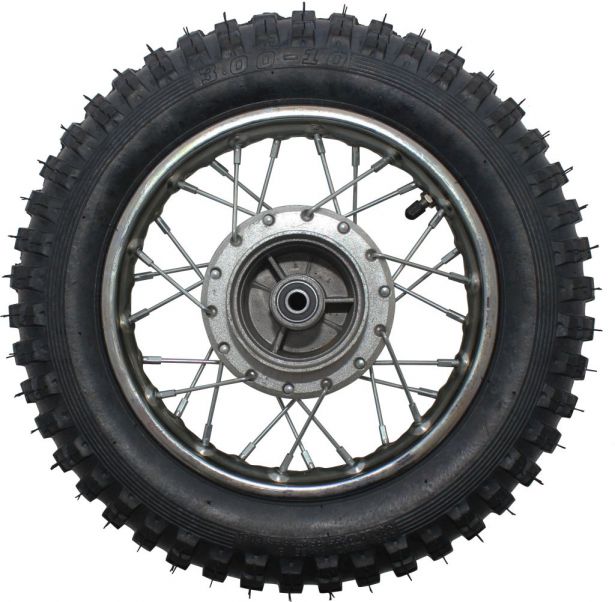

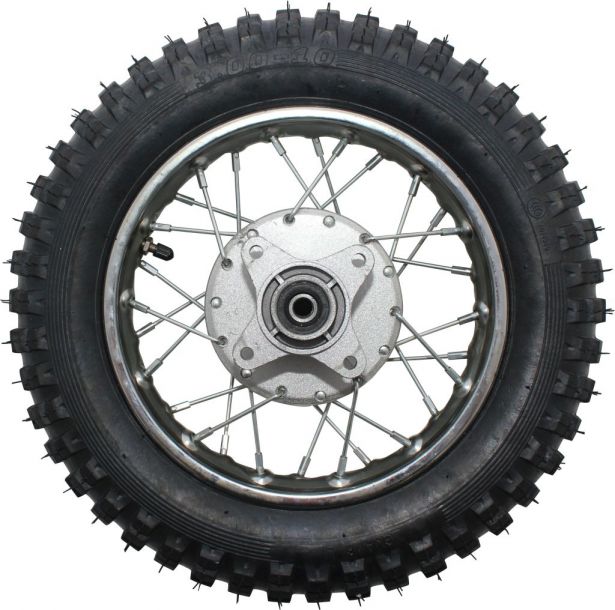

Rim and Tire Set - Rear 10" Chrome Rim (1.40x10) with 3.00-10 Tire, Drum Brake

Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
Product Number:
40D4105CR
Availability:
In Stock
Price:
$124.99 CAD


  Description

This kit contains a 10 inch rear chrome rim (1.40x10) and 10 inch tire (3.00-10) primarily (though not exclusively) used for 50cc, 70cc, 90cc, 110cc and 125cc dirt bikes / pit bikes. This rim uses a drum brake and shoe. Note that 1.40x10 and 1.65x10 rims are interchangeable in most applications.
  • Placement: Rear
  • Braking System: Drum
  • Rim Size: 1.40x10
  • Tire Size: 3.0-10
  • Axle Mount Hole: 12mm
  • Bolt Mount Across (center to center): 65mm
  • Bolt Mount Diagonal (center to center): 90mm
    Associated Parts:
  • 20A1850 Sprocket Set - Rear 428-38T, Front 428-15T
  • 40D1101 Tire - 3.00-10, 10 Inch, Dirt Bike
  • 40D4205CR Rim - Rear 10" Chrome, Steel Dirt Bike Rim 1.40x10 Drum Brake
  • 90D5100 Brake Hub - Drum Brake Backing Plate & Brake Shoes
  • 90A5030 Brake Shoe - 50cc to 125cc, Dirt Bike
