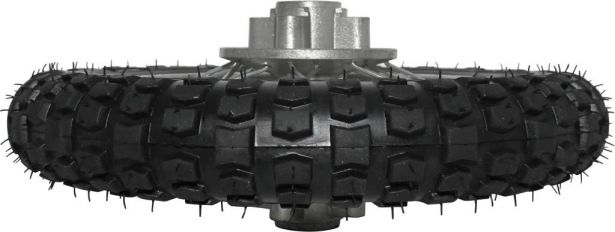

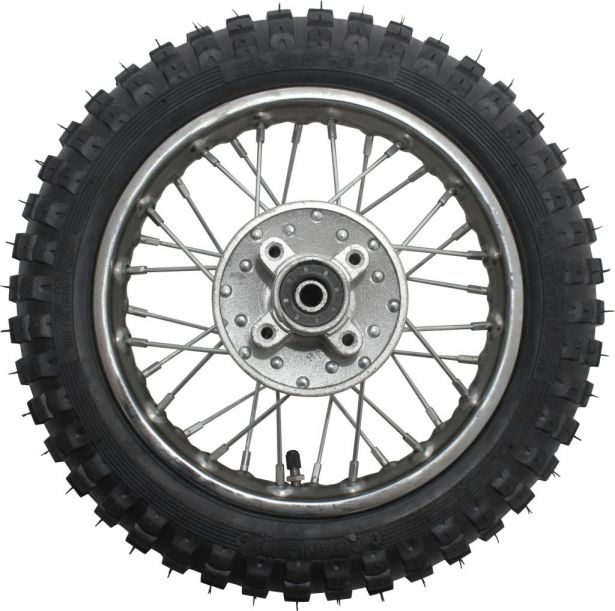

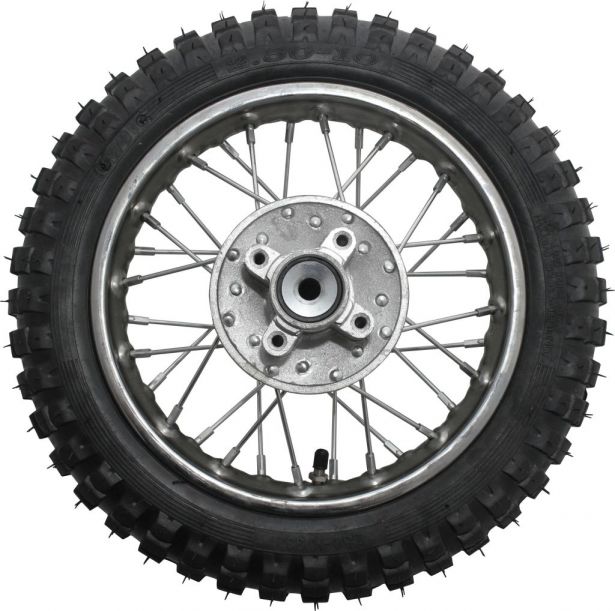

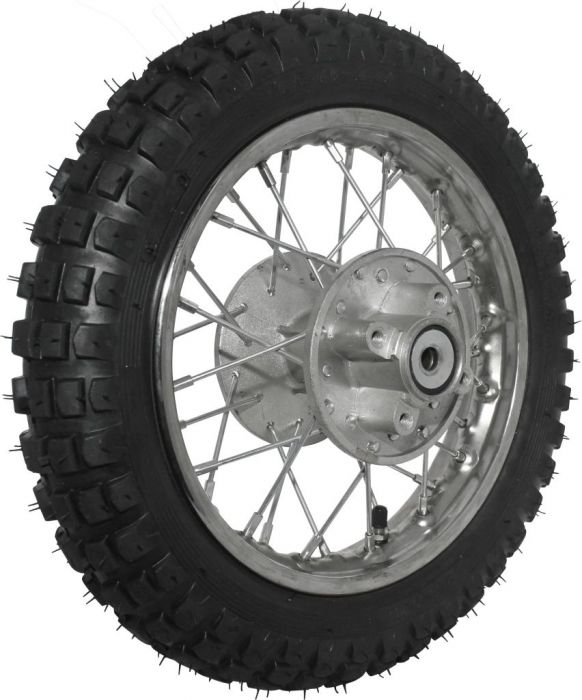

Rim and Tire Set - Rear 10" Chrome Rim (1.40x10) with 2.50-10 Tire, Disc Brake

Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
  • Rim and Tire Set - Rear 10
Product Number:
40D4108CR
Availability:
In Stock
Price:
$124.99 CAD


  Description

This kit contains a 10 inch rear chrome rim (1.40x10) and 10 inch tire (2.50-10) primarily (though not exclusively) used for 50cc, 70cc, 90cc, 110cc and 125cc dirt bikes / pit bikes. This rim uses a brake disc/rotor. Note that 1.40x10 and 1.65x10 rims are interchangeable in most applications.
  • Placement: Rear
  • Braking System: Disc/Rotor
  • Rim Size: 1.40x10
  • Tire Size: 2.50-10
  • Axle Mount Hole: 12mm
  • Bolt Mount Across (center to center): 50mm
  • Bolt Mount Diagonal (center to center): 70mm
    Associated Parts:
  • 40D1102 Tire - 60/100-10 (2.50-10), 10 Inch, Dirt Bike
