Description

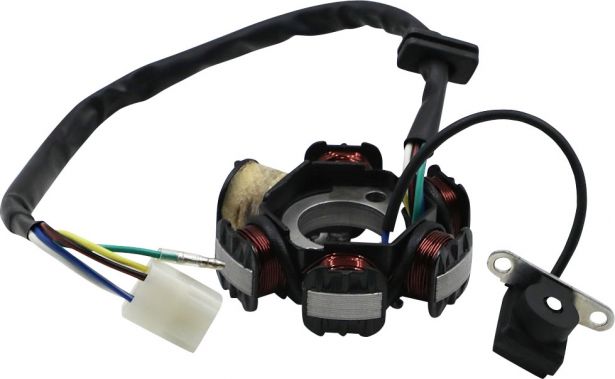

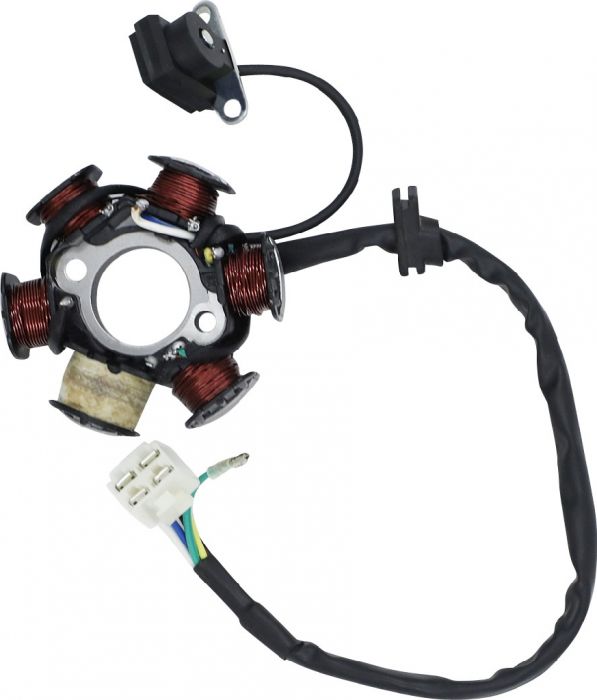

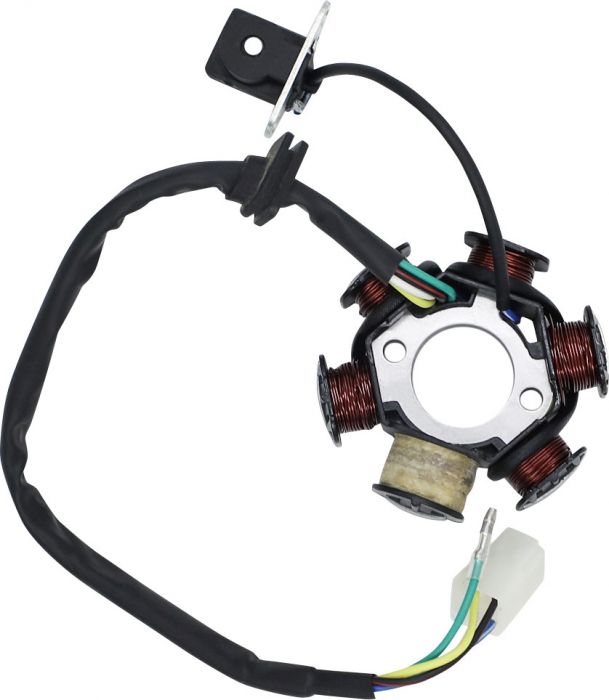

- This Stator / Magneto Coil applies to (and is not limited to) 50cc, 70cc, 90cc, 110cc, and 125cc automatic ATVs, buggies/go karts, dirt bikes and other powersports and mobility products. Most commonly used for 50cc to 125cc ATVs, this is one of two very popular stator configurations for these engine types. Many different names apply but often in the "12VB-C6" type naming format. The alternate stator used in similar engine types has 2 coils (our part number 30A9030). Approximate dimensions:
- Outside Diameter: 83.1mm
- Centre Hole Diameter: 29mm
- Mounting Hole (centre-centre): 41.5mm
- Bolt Hole: 6.6mm
- Harness Length: 37cm
- Pickup Wire Length: 10cm
- Pickup Hole (centre-centre): 35mm
