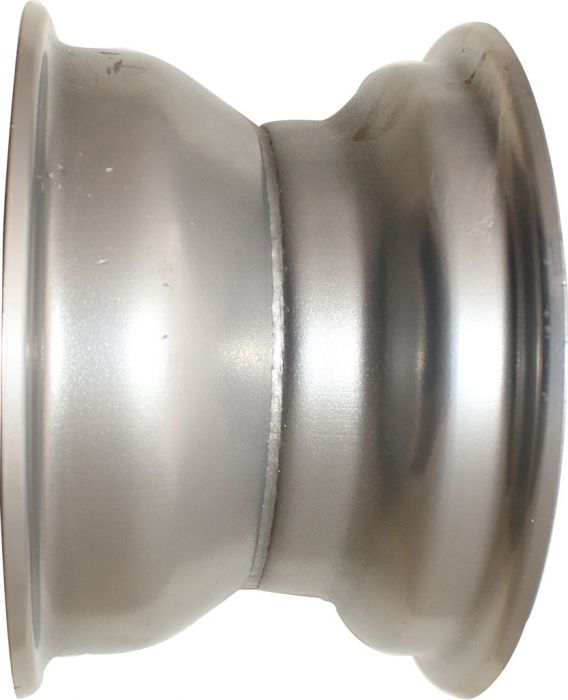

Rim - 7" Steel ATV Rim, 3 Hole Mount

Rim - 7
  • Rim - 7
  • Rim - 7
  • Rim - 7
Product Number:
40A3110
Availability:
In Stock
Price:
$34.99 CAD


  Description

Steel 7" ATV rim, 3 hole mount. Maximum outer diameter of the outer lip is approximately 20cm (7 7/8 inches). The triangular bolt pattern measures 69.8mm (2.75 inches) from inside hole to inside hole. The inner hole diameter is approximately 54.75mm (2.15 inches).
  • Outer Diameter: 20cm (7 7/8")
  • Bolt Pattern (inside-inside): approx. 69.8mm (2 3/4")
  • Bolt Pattern (center-center): approx. 79.2mm (3 1/8")
  • Inner Mounting Hole diameter: 54.75mm (2 3/8")
  • Height: 126mm (5")
    Associated Parts:
  • 40A1100 Tire - 16X8-7 (16x8x7), 50cc to 125cc, ATV
  • 70A4105 Axle Hub - 50cc-125cc, Rotating Body
  • 70A4108 Axle Hub - 50cc to 300cc, Front Drive
  • 70A4114 Axle Hub - 50cc to 300cc, 23 Tooth
  • 70A4116 Axle Hub - 50cc to 150cc
