Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch

Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
  • Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
  • Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
  • Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
Product Number:
WCH2000-CBL
Availability:
Out of Stock
Price:
$139.99 CAD


  Description

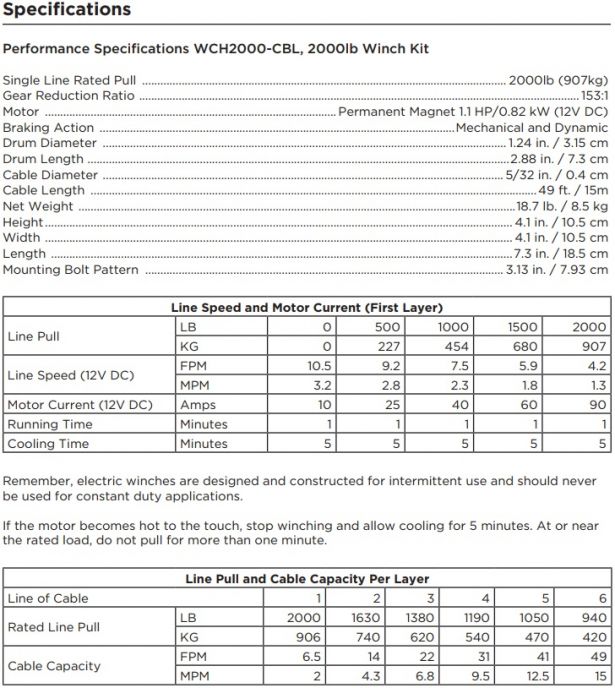

Performance Specifications WCH2000-CBL, 2000lb Winch Kit
  • Remote type: Hand-held cable-attached remote with handlebar mount.
  • Single Line Rated Pull: 2000lbs (907kg)
  • Gear Reduction Ratio: 153:1
  • Motor: Permanent Magnet 1.1 HP/0.83 kW (12V DC)
  • Braking Action: Mechanical and Dynamic
  • Drum Diameter: 1.24in. / 3.15cm
  • Drum Length: 2.88 in. / 7.3 cm
  • Cable Diameter: 5/32 in. / 0.4 cm
  • Cable Length: 49ft. / 15m
  • Net Weight: 18.7lb. / 8.5kg
  • Height: 4.1 in. / 10.5cm
  • Width: 4.1 in. / 10.5cm
  • Length: 7.3 in. /18.5cm
  • Mounting Bolt Pattern: 3.13in. / 7.93 cm

Line Speed and Motor Current (First Layer)
Line Pull LB 0 500 1000 1500 2000
KG 0 227 454 680 907
Line Speed (12V DC) FPM 10.5 9.2 7.5 5.9 4.2
MPM 3.2 2.8 2.3 1.8 1.3
Motor Current (12V DC) Amps 10 25 40 60 90
Running Time Minutes 1 1 1 1 1
Cooling Time Minutes 5 5 5 5 5

Remember, electric winches are desgned and constructed for intermittent use and should never be used for constant duty applications.

If the motor becomes hot to the touch, stop winching and allow cooling for 5 minutes. At or near the rated load, do not pull for more than one minute.

Line Pull and Cable Capacity Per Layer
Line of Cable 1 2 3 4 5 6
Rated Line Pull LB 2000 1630 1380 1190 1050 940
KG 906 740 620 540 470 420
Cable Capacity FPM 6.5 14 22 31 41 49
MPM 2 4.3 6.8 9.5 12.5 15

Associated Parts:
  • WCH9100 - Winch Wireless Remote and Controller Set (2pc set)


  Download User Manual (PDF)
Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
Winch - MNPS 2000 lb 12 Volt (820W / 1.1HP) Cabled Switch
Product Specifications
Braking Action Mechanical and Dynamic
Cable Diameter 0.4 cm
Cable Length 1500 cm
Drum Diameter 3.15 cm
Drum Length 7.3 cm
Gear Reduction Ratio 153:1
Motor 820 W
Mounting Bolt Pattern 7.93 cm
Single Line Rated Pull 907 kg
Height 10.5 cm
Length 18.5 cm
Width 10.5 cm
Weight 8.5 kg
