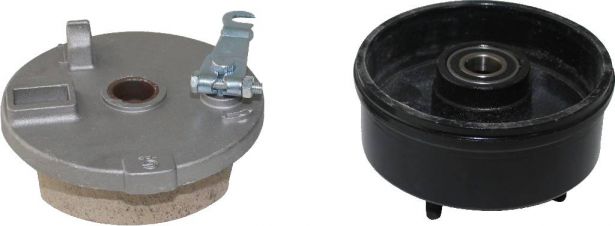

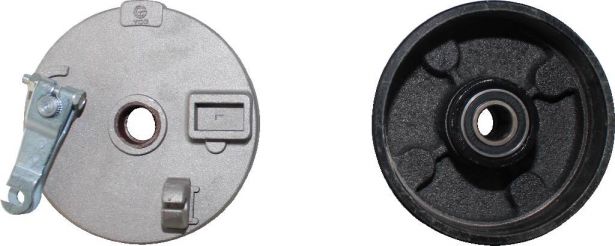

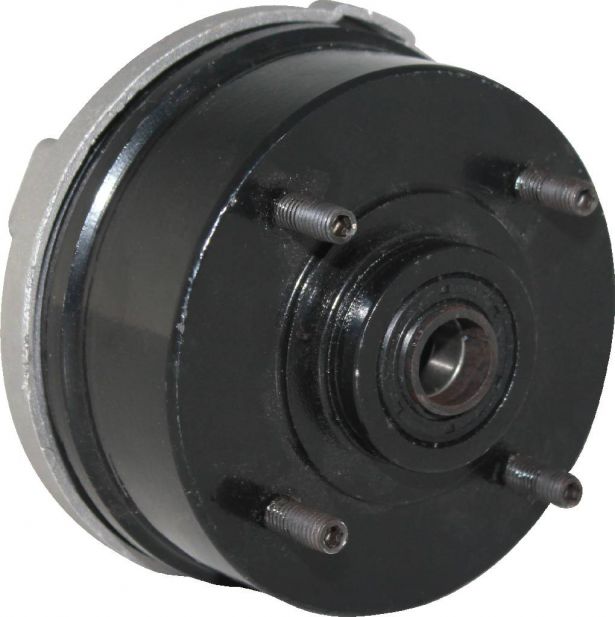

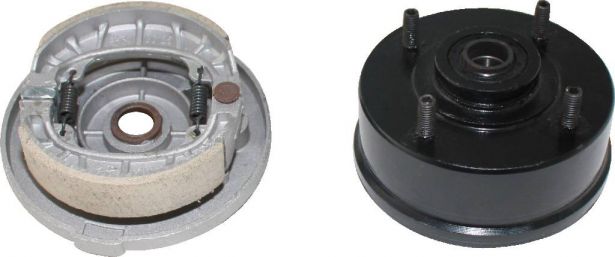

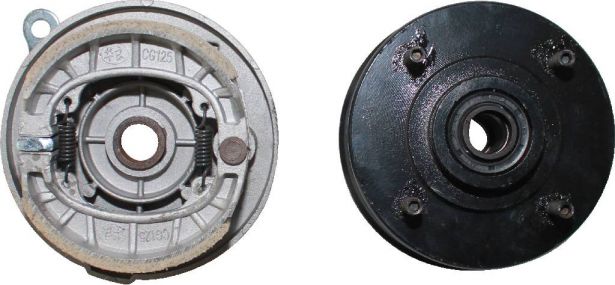

Drum Brake Assembly - 4 Bolt, M8, Right Side
Description
- Drum brake assembly, 4 bolt mount, M10, right side. This drum brake is most commonly (though not exclusively) used for 50cc to 300cc ATVs and other powersports products.
Product Specifications
- Center Mount: 18mm
- Bolt: M8
- Mount Pattern: 3 Bolt
- Bolt Mount (center to Center): 62mm
- Bolt Mount Diagonal(center to center): 88mm
- Outer Dimensions: 116mm
- Overall Height: 61mm
Associated Parts:
- 20A5566 Seal
- 90A5010 Brake Shoe
- 90D5116 Brake Hub
- BRG6003-2RS Bearing
