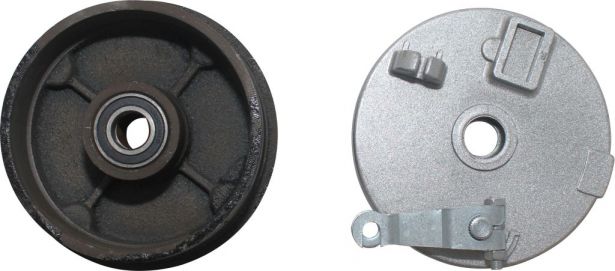

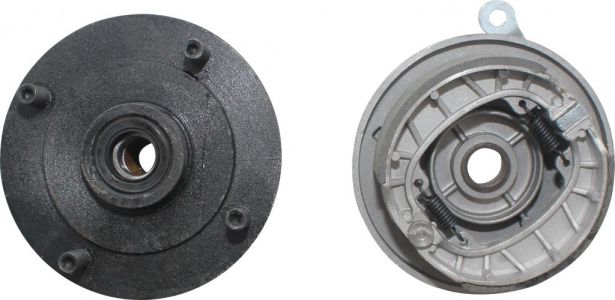

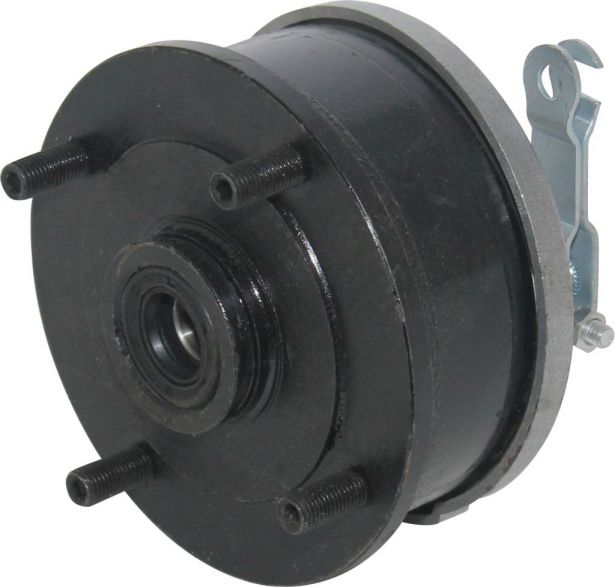

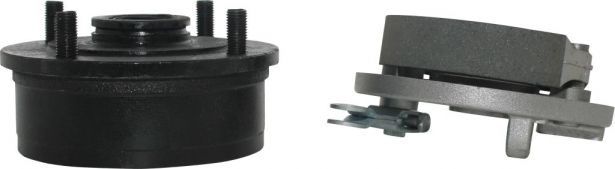

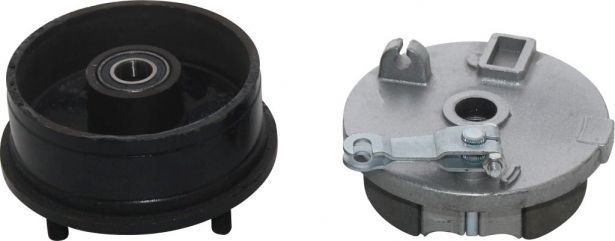

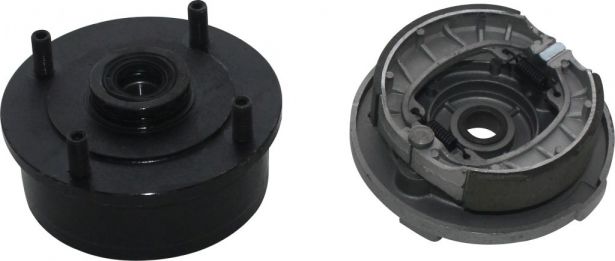

Drum Brake Assembly - 4 Bolt, M10, Right Side

Drum brake assembly, 4 bolt mount, M10, right side. This drum brake is most commonly (though not exclusively) used for 50cc to 300cc ATVs and other powersports products.

Product Specifications

• Placement: Right
• Center Mount: 18mm
• Bolt: M10
• Mount Pattern: 3 Bolt
• Bolt Mount (center to center): 77mm
• Bolt Mount Diagonal (center to center): 110mm
• Outer Dimensions: 120mm
• Overall Height: 63mm

Associated Parts:

• 90A5118 Brake Drum
• 90D5116 Brake Hub
