Product Number:
90A5110
Availability:
In Stock
Price:
$54.99 CAD


  Description

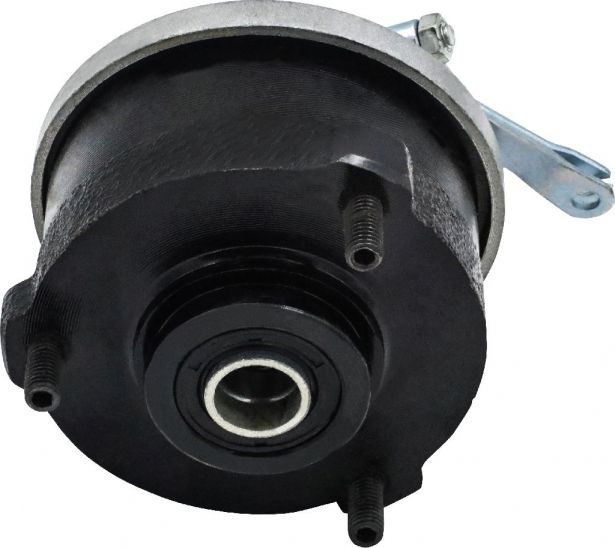

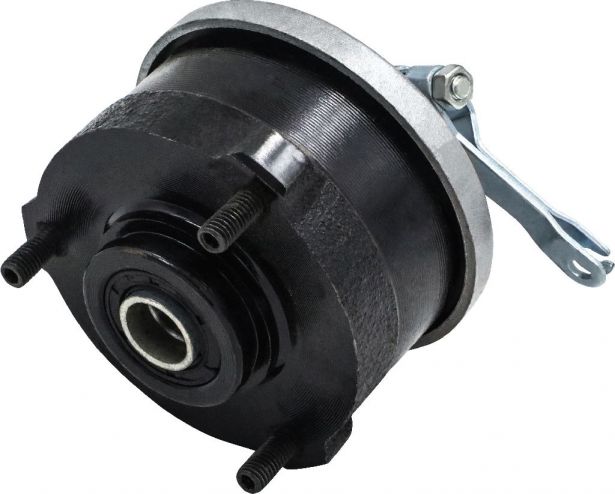

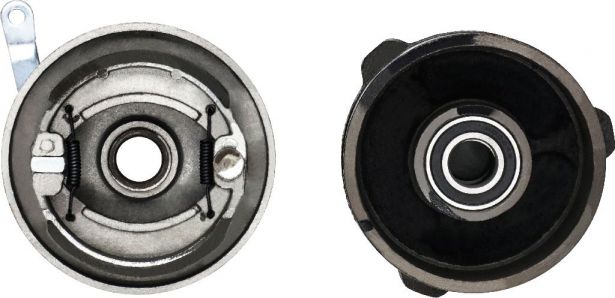

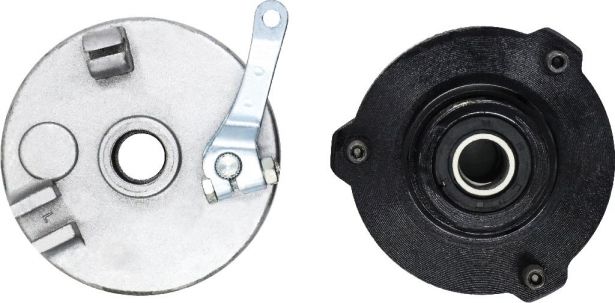

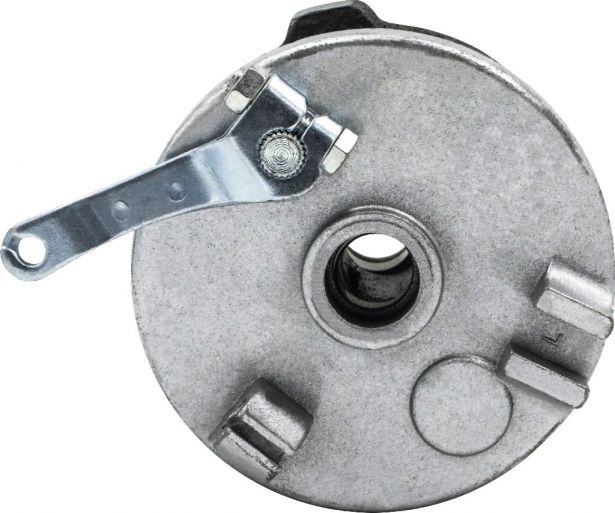

Drum brake assembly, 3 bolt mount, M8, left side. This drum brake is most commonly (though not exclusively) used for 50cc to 300cc ATVs and other powersports products.

Product Specifications

  • Placement: Left
  • Center Mount: 18mm
  • Bolt: M8
  • Mount Pattern: 3 Bolt
  • Bolt Mount (center to center): 77mm
  • Outer Dimensions: 94mm
  • Overall Height: 62mm

Associated Parts:

  • 90D5030 Brake Shoe
  • 20A5566 Seal
  • BRG6003-2RS Bearing
