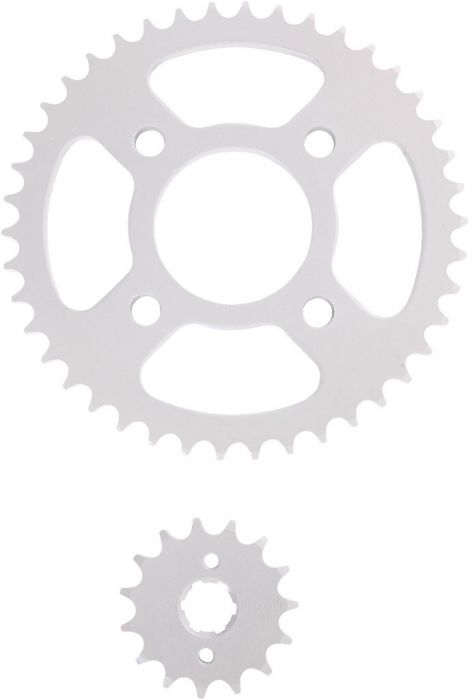

Sprocket Set - Rear 428-46T, Front 428-14T

Sprocket Set - Rear 428-46T, Front 428-14T
  • Sprocket Set - Rear 428-46T, Front 428-14T
  • Sprocket Set - Rear 428-46T, Front 428-14T
Product Number:
20A1855
Availability:
In Stock
Price:
$39.99 CAD


  Description

Sprocket Set - Rear 428-46T, Front 428-14T. JH125
    Rear Sprocket:
  • Outside Diameter: 190mm
  • Centre Hole Diameter: 58.1mm
  • Mounting Hole (centre-centre): 62mm
  • Mounting Hole (centre-centre diagonal): 90mm
  • Bolt Hole: 10.5mm
  • Thickness: 7mm
    Front Sprocket:
  • Outside Diameter: 61mm
  • Centre Hole Diameter: 20mm
  • Thickness: 7mm
    Associated Parts:
  • 20A1920 Lock sprocket
  • 20A1915 Lock Sprocket Bolt
