Description

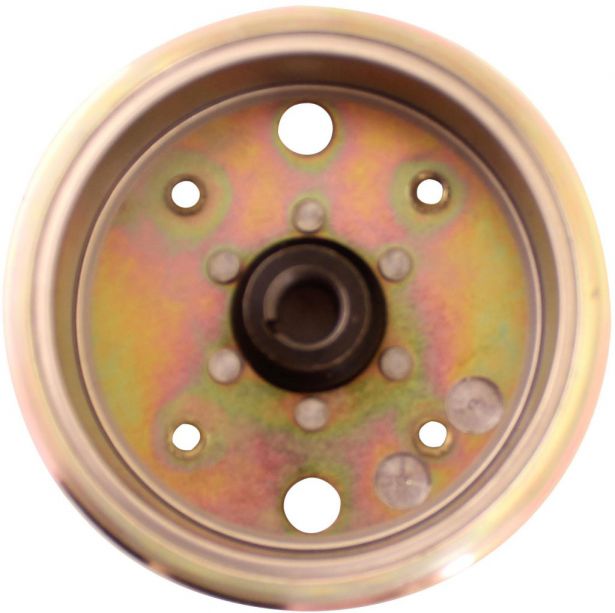

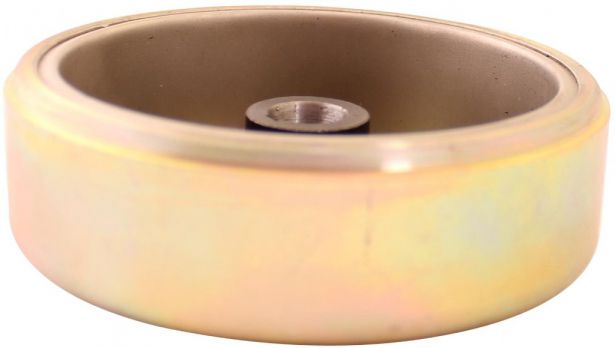

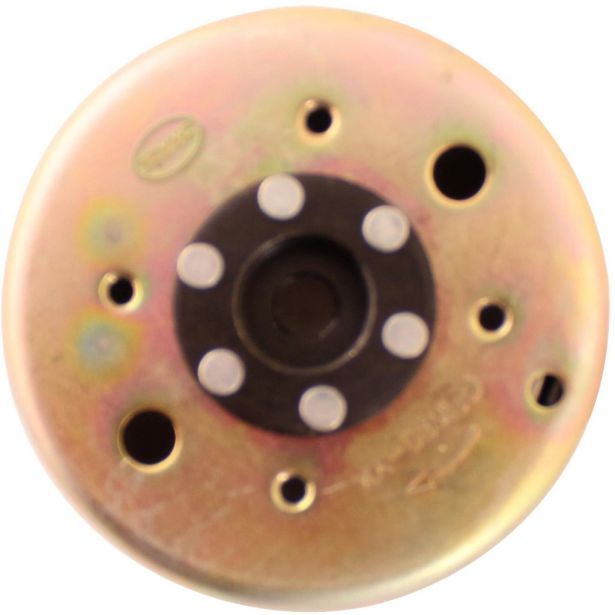

- This Magneto Cylinder / Stator Housing is the most common design used for GY6 50cc ATVs, dirt bikes scooters etc. CFW50
- Inner Diameter (ID): 89.9mm
- Outer Diameter (OD): 109.3mm
- Overall Height: 37.2mm
- Center Hole Mount (Tapered): 10/14mm
- Mounting Holes (center - center) (Side by Side): 72mm
- Threaded Holes: 5mm
