Brake AssembliesBrake Discs & RotorsBrake Fluid ReservoirsBrake Line Ts and JointsBrake Lines / Brake HosesBrake PadsBrake ShoesCalipersMaster CylinderBrake Pads - 125cc to 800cc, ATV
Description

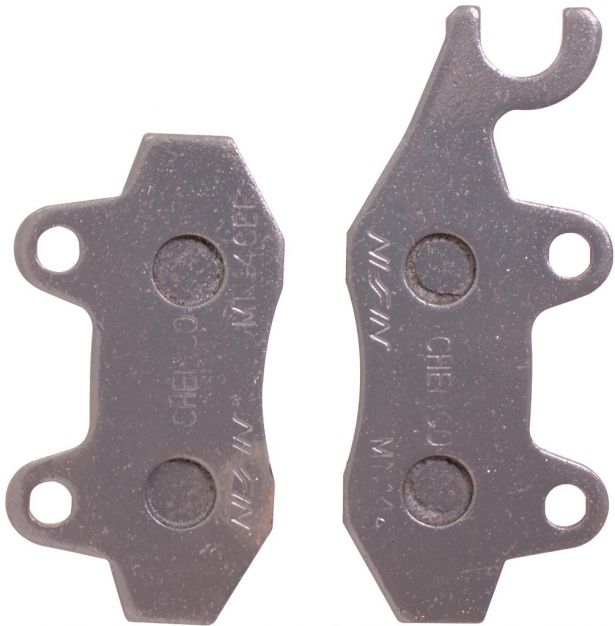

- Brake Pads Set. This brake pad set applies (but is not limited to) 125cc to 800cc ATVs, such as the front brake pads for 500cc Gio Rock Liner and other large ATVs. Approximate dimensions:
- Large Pad:
- Total Length: 97.5mm
- Total Width: 42.2mm
- Alignment Holes: 6.8mm
- Alignment Hole Spacing: 39.5mm (center to center)
- Small Pad:
- Total Length: 77.3mm
- Total Width: 42.2mm
- Alignment Holes: 6.6mm
- 90A7065 Brake Caliper
Associated Parts: Manufacturer Part Number:
- 44204-115-0000 Inner Pad
- 44203-115-0000 Outer Pad
Specifications
| Large Pad | ||
|---|---|---|
| Alignment Hole Spacing | 39.5mm (center to center) | |
| Alignment Holes | 6.8 | |
| Total Length | 97.5 mm | |
| Total Width | 42.2 mm | |
| Small Pad | ||
| Alignment Holes | 6.6 mm | |
| Total Length | 77.3 mm | |
| Total Width | 42.2 mm | |
