Description

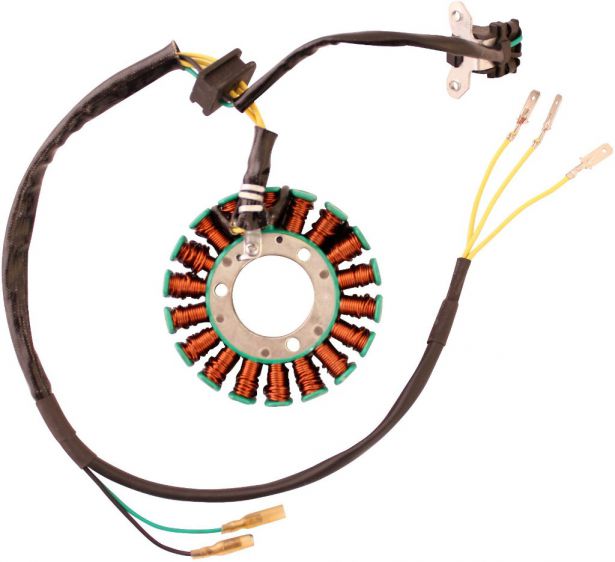

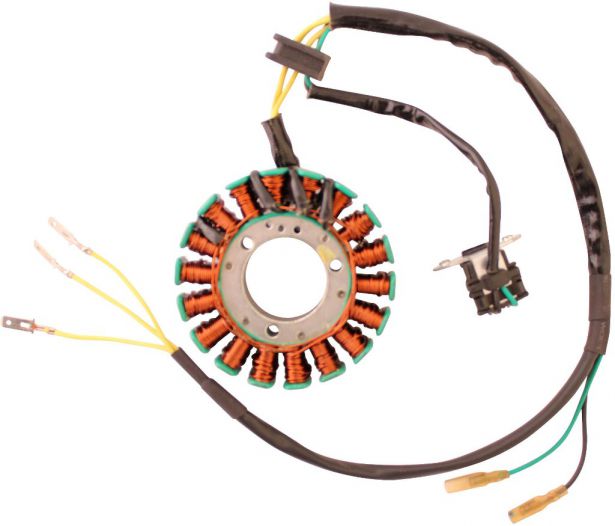

- Stator / Magneto Coil - GS18. Approximate dimensions:
- Outside Diameter: 92.9mm
- Centre Hole Diameter: 35.1mm
- Mounting Hole (centre-centre): 37.7mm
- Bolt Hole: 5.7mm
- Harness Length: 67cm
- Pickup Wire Length: 10cm
- Pickup Hole (centre-centre): 30mm
