Description

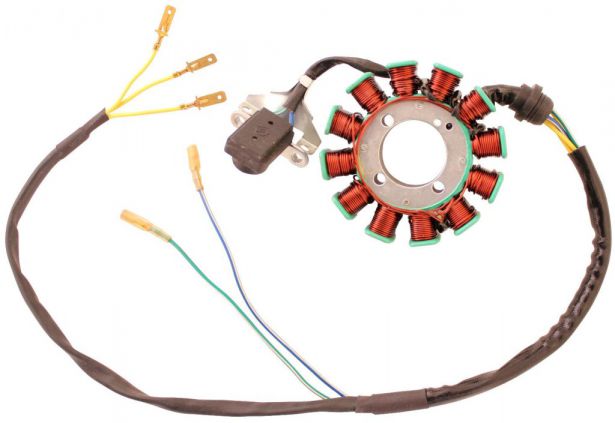

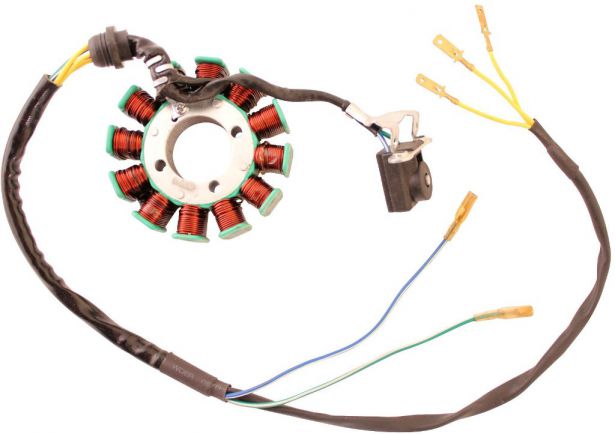

- Stator / Magneto Coil - CG12, 5 Wire. Stator has a 3 wire female plug and 2 wires with bullet connectors. Approximate dimensions:
- Outside Diameter: 88.6mm
- Centre Hole Diameter: 32.1mm
- Mounting Hole (centre-centre): 40mm, 28mm
- Bolt Hole: 5.5mm
- Harness Length: 59cm
- Pickup Wire Length: 14cm
- Pickup Hole (centre-centre): 35mm
