Battery Management Systems (BMS)CapacitorsCDIs and ECUsChargersCigarette LightersCircuit BreakersControl Switches & PanelsControllersConvertersDiodesElectric Motors, Actuators & AssembliesFlashers & BuzzersFuses & Fuse BoxesHandle Bar & Brake SwitchesHorns and Horn buttonsIgnition CoilsInstrument Clusters & DisplaysKey Switches / Igntition SwitchesMagneto CylindersMedia Players and SpeakersPlugs, Outlets & CablesRectifiers / Voltage RegulatorsRelays / Starter RelaysRemote Alarms & StartersSafety Tethers & Kill CordsSensorsStarter/Carburetor WiresStartersStators / Magneto CoilsWiring Harnesses & AssembliesStator - Magneto Coil, GY6-12, 4 Wire
Description

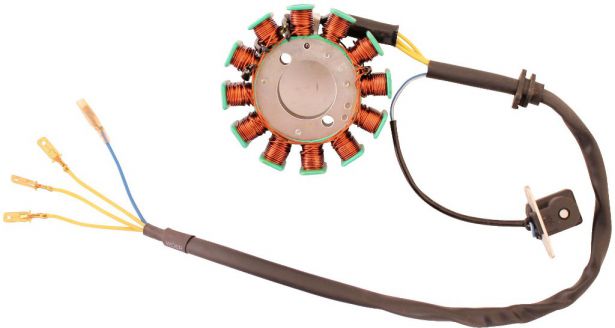

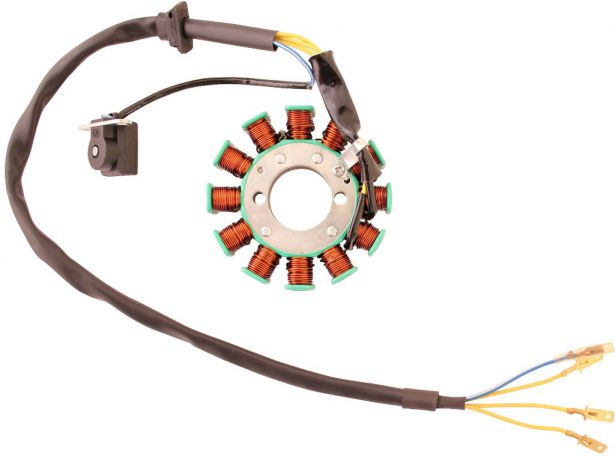

- Stator / Magneto Coil - GY6-12 12 Coil. Approximate dimensions:
- Outside Diameter: 88.1mm
- Centre Hole Diameter: 29mm
- Mounting Hole (centre-centre): 40.1mm
- Bolt Hole: 6.3mm
- Harness Length: 69cm
- Pickup Wire Length: 15cm
- Pickup Hole (centre-centre): 35mm
