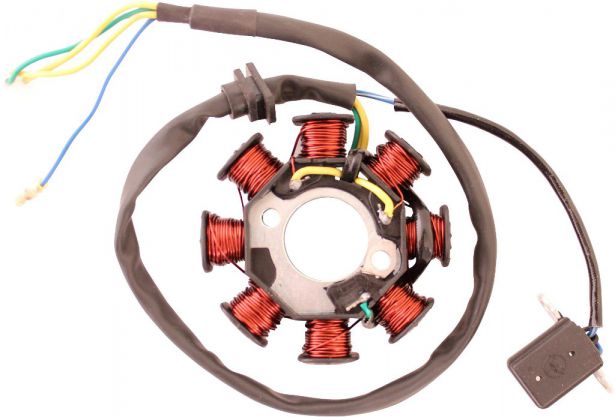

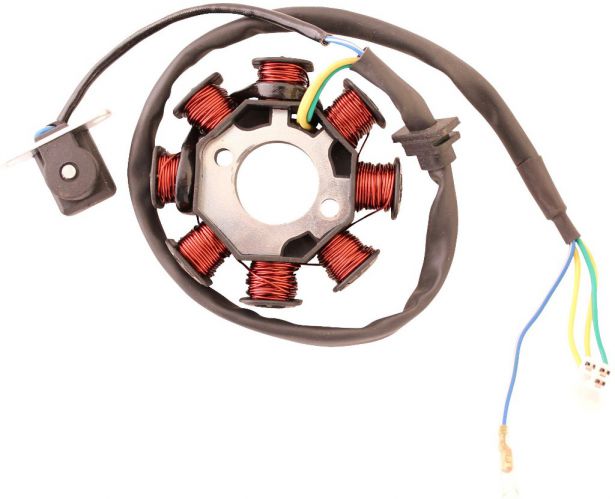

Stator - Magneto Coil, GY6-8, 4 Wire

Stator - Magneto Coil, GY6-8, 4 Wire
  • Stator - Magneto Coil, GY6-8, 4 Wire
  • Stator - Magneto Coil, GY6-8, 4 Wire
  • Stator - Magneto Coil, GY6-8, 4 Wire
Product Number:
30A9335
Availability:
In Stock
Price:
$64.99 CAD


  Description

Stator / Magneto Coil - GY6-8, 5-wire. Approximate dimensions:
  • Outside Diameter: 88mm
  • Centre Hole Diameter: 29.1mm
  • Mounting Hole (centre-centre): 41.2mm
  • Bolt Hole: 6.4mm
  • Harness Length: 69cm
  • Pickup Wire Length: 20cm
  • Pickup Hole (centre-centre): 35mm
