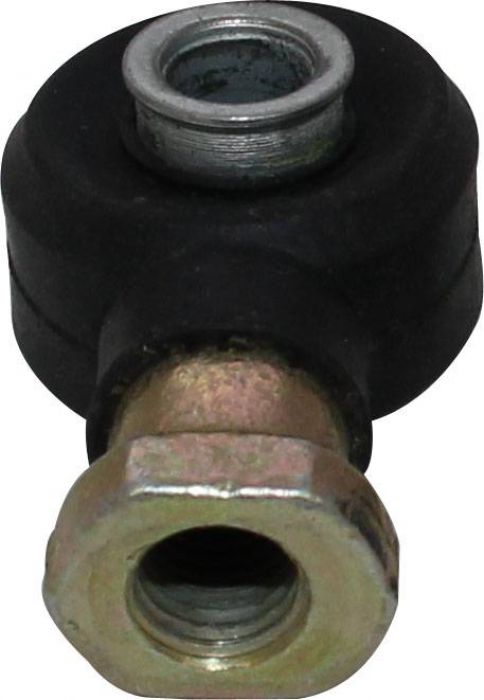

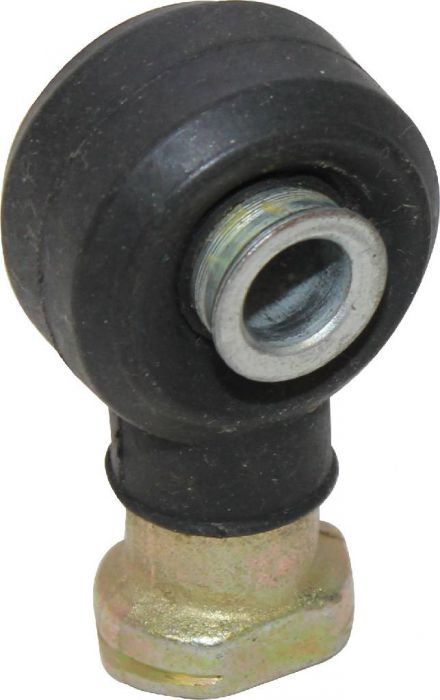

Tie Rod End - Linhai, Buyang, Xingyang, Xingyue, Chironex, Stels, 250cc, 300cc, 400cc, 500cc

This tie rod end is typically found in the A-Arm / Front Suspension / Steering Column section of several part manuals. Commonly used for but not limited to 260cc, 300cc, 325cc, 330cc, 400cc, 500cc, and 550cc engines. It is most popularly known for its use in Linhai 260cc / 300cc / Allroad Challenger 300 / LH300 / 400cc / 500cc, Xingyue (GS Moon) 300cc, XY Xingyang & XY Powersports MaxTorque 300 UTV, Buyang 300 4x4 / FA-H300 / FA-G300 / FA-D300 / ZR300U-4X4 / Monster 300cc / Daymak Grunt 300 / Gio Bear 300 / Midwest 300cc / ZMC Titan 300 / Pioneer 300cc, Chironex Bandito 300 / 550 / 550EFI / 550 XT EFI, Asun 300cc, Atomik Krusher 300cc 2WD, Benyco 300, GMX Motorbikes Krusher Fa-D300B 4WD, GOES 330, Quadzilla 325 4x4, Stels 300B / Hunter XTX300B, Crossfire Motorcycles Trident 550 ATV FS2V73MS, Asun 300, HTV Motors (Hydrodrive) Puma 550, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. This product has been produced for 10+ years and can be applied to 2x4, 4x4 and 4x4 IRS (Independent Rear Suspension) models. Also applies to the 550cc ATV 550N of the same brands.

Approximate Dimensions:

• Total Length: 58mm (2.28”)
• Length from the center of the Mounting Hole to the Tip: 43mm (1.69”)
• Inner Diameter of the Mounting Hole: 10mm (0.39”)
• Outer Diameter of the Mounting Hole: 14mm (0.55”)
• Thread: M12, 1.75 left hand thread

Manufacturer Part Numbers:

• Chironex Part Number: 3.1.01.1010 “TIE ROD END A”
• Linhai Part Number: 3.1.01.1010 “TIE ROD END A”
• Buyang Part Number: 3.1.01.1010 “TIE ROD END A”
• Stels Part Number: 3.1.01.1010 (LU019055) “TIE ROD END A”
• Atomik Part Number: 3.1.01.1010 “TIE ROD END A”
• HTV Motors (Hydrodrive) Part Number: 3.1.01.1010 “ROD END A”
• GMX Motorbikes Part Number: 3.1.01.1010 “TIE ROD END A”
• Crossfire Motorcycles Part Number: 3.1.01.1010 “TIE ROD END A”
• GOES Part Number: 3.1.01.1010 “TIE ROD END A”
• Benyco Part Number: 3.1.01.1010 “TIE ROD END A”
• Quadzilla Part Number: 3.1.01.1010 “TIE ROD END A”
