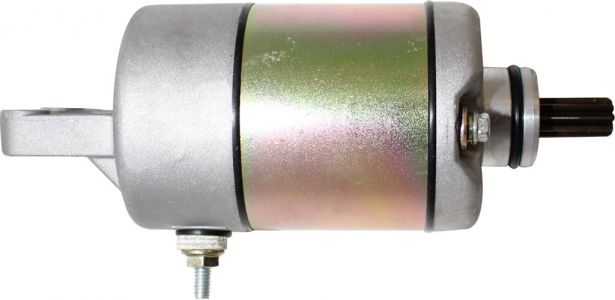

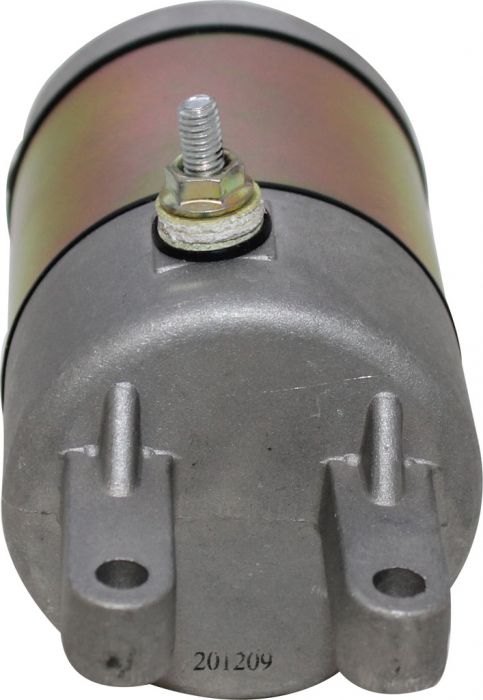

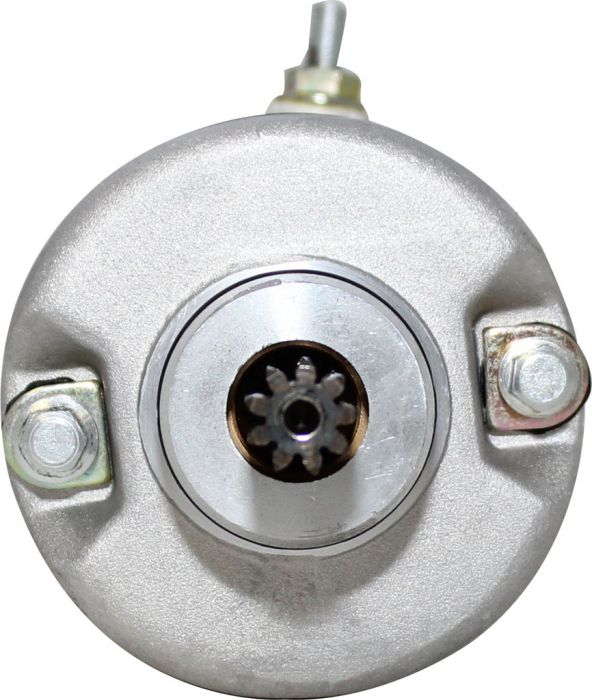

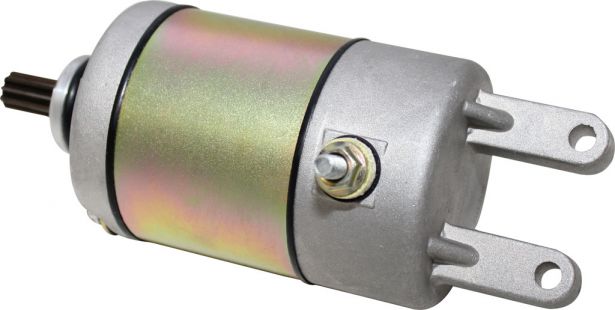

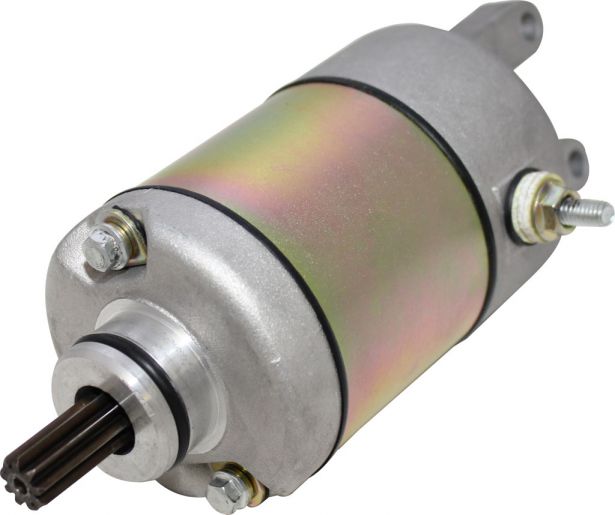

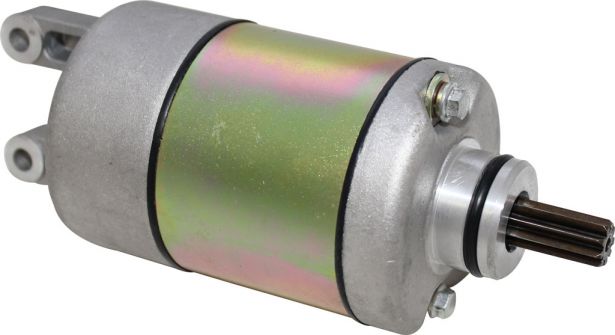

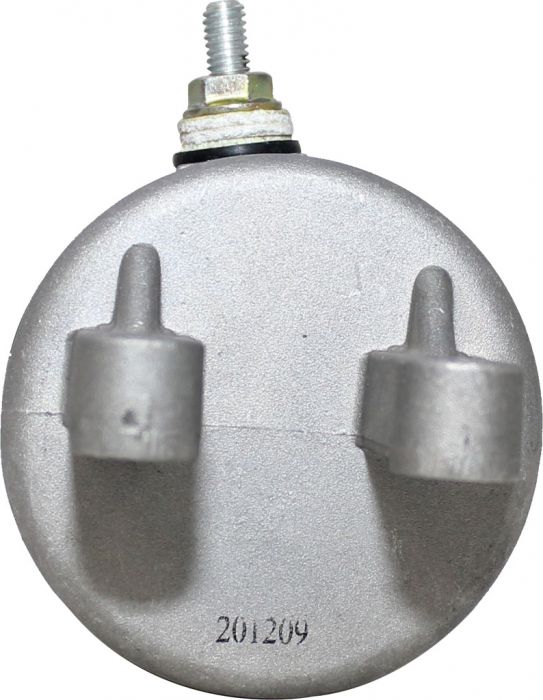

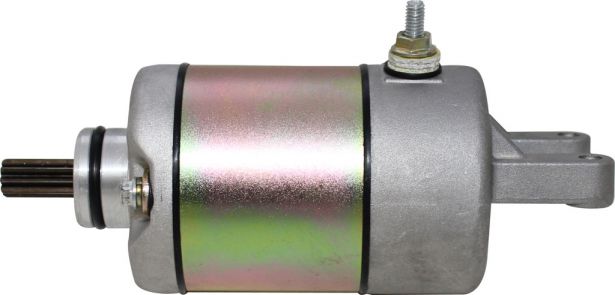

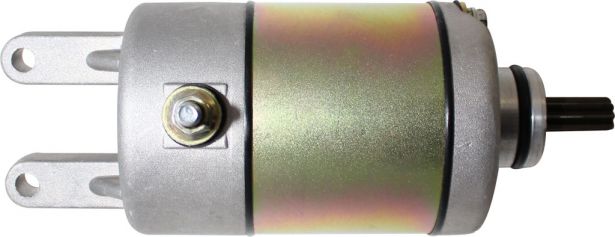

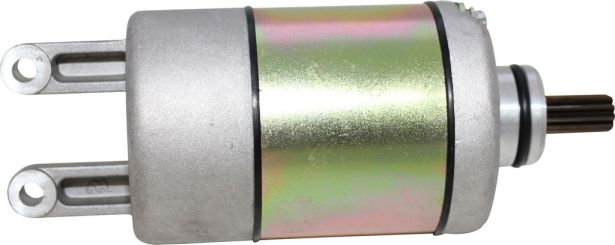

Starter - CF Moto, Linhai, Buyang, Chironex, 260cc, 300cc, 325cc

This starter motor assembly is typically found in the Starting Motor / Starter section of several part manuals. Commonly used for but not limited to 4-stroke liquid cooled RS19589 / 260cc, 300cc, and 325cc engines. It is most popularly known for its use in CF Moto Allroad 300 / Allroad 300CH / Allroad 300IS, Linhai 260cc / 300cc / Manco Talon, Buyang 300 4x4 / FA-D300 / FA-H300 / FA-G300 / ZR300U-4X4 / Daymak Grunt 300 / Gio Bear 300 / Midwest 300cc / ZMC Titan 300 / Pioneer 300cc, Chironex Bandito 300, Asun 300cc, Atomik Krusher 300cc 2WD, Benyco 300, Delta Force 300, Explorer Ranger 4x4, GMX Motorbikes Krusher Fa-D300B 4WD, GOES 330, Quadzilla 325 4x4, Stels 300B / Hunter XTX300B, XY Xingyang & XY Powersports MaxTorque 300, Yamaha 260cc / 300cc, American Sportsworks 260cc / 300cc, Roketa 260cc / 300cc, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names. The starter has been produced since the early 2000s and can be applied to 2x4, 4x4 and 4x4 IRS (Independent Rear Suspension) models.

This product is physically identical to the 550cc starter 30A1265 (PN: 2.1.14.0560) which was manufactured from the same company except that the power structure and internal components are different. Therefore, we do not recommend interchanging them.

Approximate Dimensions:

• Outside Diameter of the Shaft / Spline: 12mm (0.47”)
• Length of the Shaft / Spline: 0.94mm
• Total Length (not including the mounting): 180mm (7.09”)
• Housing diameter: 69mm (2.71”)
• Spacing of the mounting holes: 36mm (1.42”)
• Embedding diameter: 30mm (1.18”)
• Number of Mount Holes: 2
• Number of Splines: 9
• Rotation: Clockwise

Includes Part Numbers:

• 2.1.01.6010 “BRUSH HOLD ASSY”
• 2.1.01.6020 “CORD,STARTER MOTOR”
• 2.1.01.6030 “BOLT”
• 2.1.01.6040 “GASKET”
• 2.1.01.6050 “O-RING 24.5X3”
• 2.1.01.6060 “FLANGE BOLT M6X25”

Manufacturer Part Numbers:

• Chironex Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• Atomik Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• Buyang Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• Delta Force Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• GMX MotorbikesPart Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• GOES Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• Quadzilla Part Number: 2.1.01.6000 “STARTING MOTOR ASSY”
• ATV Sweden Part Number: CH300M-36-101 “STARTING MOTOR ASSY”
• Benyco Part Number: CH300M-36-101 “STARTING MOTOR ASSY”
• Stels Part Number: 2.1.01.6000 (LU019989) “STARTING MOTOR ASSY”
  • Stels Starting Motor Assembly Includes Part Numbers:
    • 2.1.01.6010 (LU019990) “BRUSH HOLD ASSY”
    • 2.1.01.6020 (LU019992) “CORD,STARTER MOTOR”
    • 2.1.01.6030 (LU019993) “BOLT”
    • 2.1.01.6040 (LU019994) “GASKET”
    • 2.1.01.6050 (LU019995) “O-RING 24.5X3”
    • 2.1.01.6060 (LU013763) “BOLT M6X25”
