Axle Shaft - Front, Hisun, Yamaha, 500-700cc, ATV

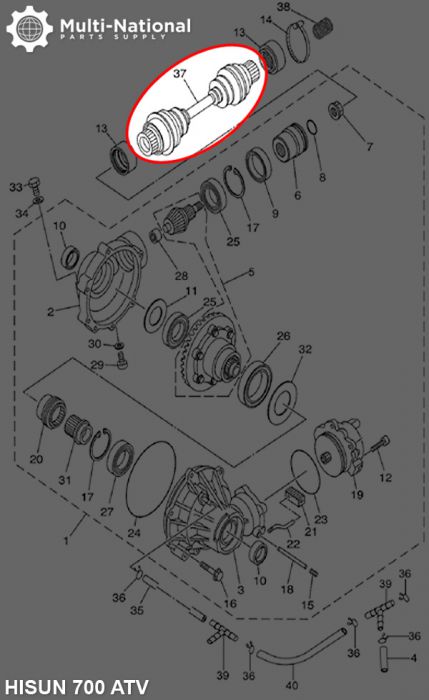

This front axle transmission shaft is typically found in the Front Case Parts / Front Differential section of several part manuals. Commonly used for but not limited to 500cc, 600cc, and 700cc engines. It is most popularly known for its use in Hisun HS700 700cc ATV / HS700ATV-4/ HS600 600cc / HS500 / HS500ATV-4 (A,B,C) / HS500ATV-2 (A,B,C), Yamaha Grizzly 660 / YFM660 ATV, Massimo MSU 500 / MSU550 / MSU700, Despiece ATV-500 (2014), Diamo Discovery, Nordik Storm 400 / Storm 500 / Storm 700 / Storm 700 SE, Coleman Powersports Trail Tamer 500 / AT500, Supermach 500 / 700, Powermax Bearclaw 500 / Bearclaw 700, Masai A500 / A500IX / A550I / A550I EPS / A550IX EPS / A700 / A750 IX / H5, as well as many other brands of ATVs, UTVs (side-by-side), dirt bikes, scooters, go karts (buggies), and engines with alternative profile names.

This front axle is commonly manufactured by Chongqing Huansong Industries (Group) Co., Ltd. and distributed by a range of exporters, importers and distributors under such brands as: Hisun, Bennche, Coleman, Massimo, Qlink, Menards Yardsport, Big Muddy, Powermax, Nordik, TSC, Rural King, Cub Cadet, Excalibur, US Titan / Supermach, Precision, JMC and many others.

Approximate Dimensions:

• Total Length: 325mm (12.80”)
• Axle Shaft Diameter: 20mm (0.79”)
• Drive / Spline Shaft Outer Diameter of Side 1: 40mm (1.57”)
• Drive / Spline Outer Diameter of Side 2: 40mm (1.57”)
• Drive / Spline Inner Diameter of Side 1: 27mm (1.06”)
• Drive / Spline Inner Diameter of Side 2: 19mm (0.75”)

ERP Code: P107000252100000

Manufacturer Part Number:

• Hisun Part Number: 26310-107-0000 “FRONT AXLE TRANSMISSION SHAFT”

Alternative Part Numbers:

• Hisun Part Numbers: 25210-107-000-0000, 26312-107-0000 “FRONT AXLE TRANSMISSION SHAFT”

Replaces Part Number:

• Hisun Part Number : 27530-058-0000 “FRONT AXLE TRANSMISSION SHAFT”
• Diamo Part Number: 08-039-1337 “FRONT DRIVE SHAFT”

Interchangeable Part Number / Cross Reference:

• Stels Part Number: LU022522 Front Drive Transmission Shaft
