Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc

Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc
  • Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc
  • Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc
Product Number:
90A2025
Availability:
In Stock
Price:
$23.99 USD


  Description

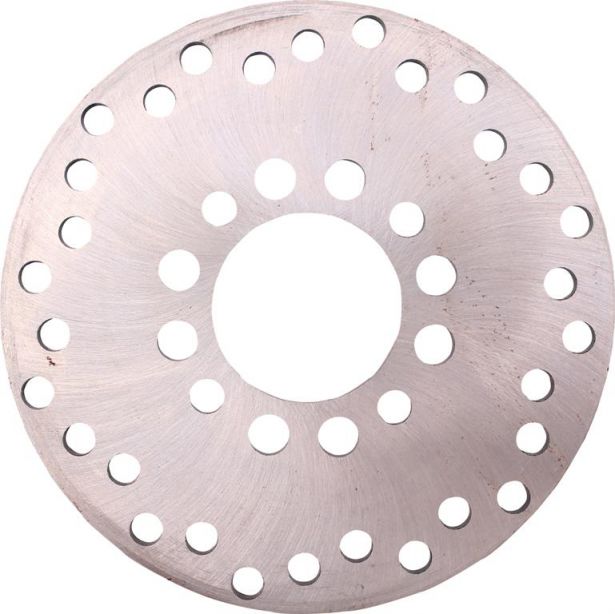

This disc brake rotor is made from hardened, corrosion resistant steel. Rotor has a 12 hole universal bolt pattern with. Commonly, though not exclusively, used for 50cc to 300cc dirt bikes, ATVs, go karts, scooters and buggies. Approximate dimensions:
  • Outer Diameter: 159mm
  • Centre Hole: 48mm
  • Thickness: 3mm
  • Mounting Holes: 8mm
  • Mounting Hole Spacing (across): 68mm (centre to centre)
  • Mounting Hole Spacing (side by side): 20mm (centre to centre)
Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc
Brake Rotor - 12 Universal Bolt 159mm 48mm Brake Disc, 50cc to 300cc
Product Specifications
Centre Hole 48 mm
Mounting Hole Spacing (across) 68mm (centre to centre)
Mounting Hole Spacing (side by side) 20mm (centre to centre)
Mounting Holes 8
Outer Diameter 159 mm
Thickness 3 mm
